Double the flame. Double the impact.

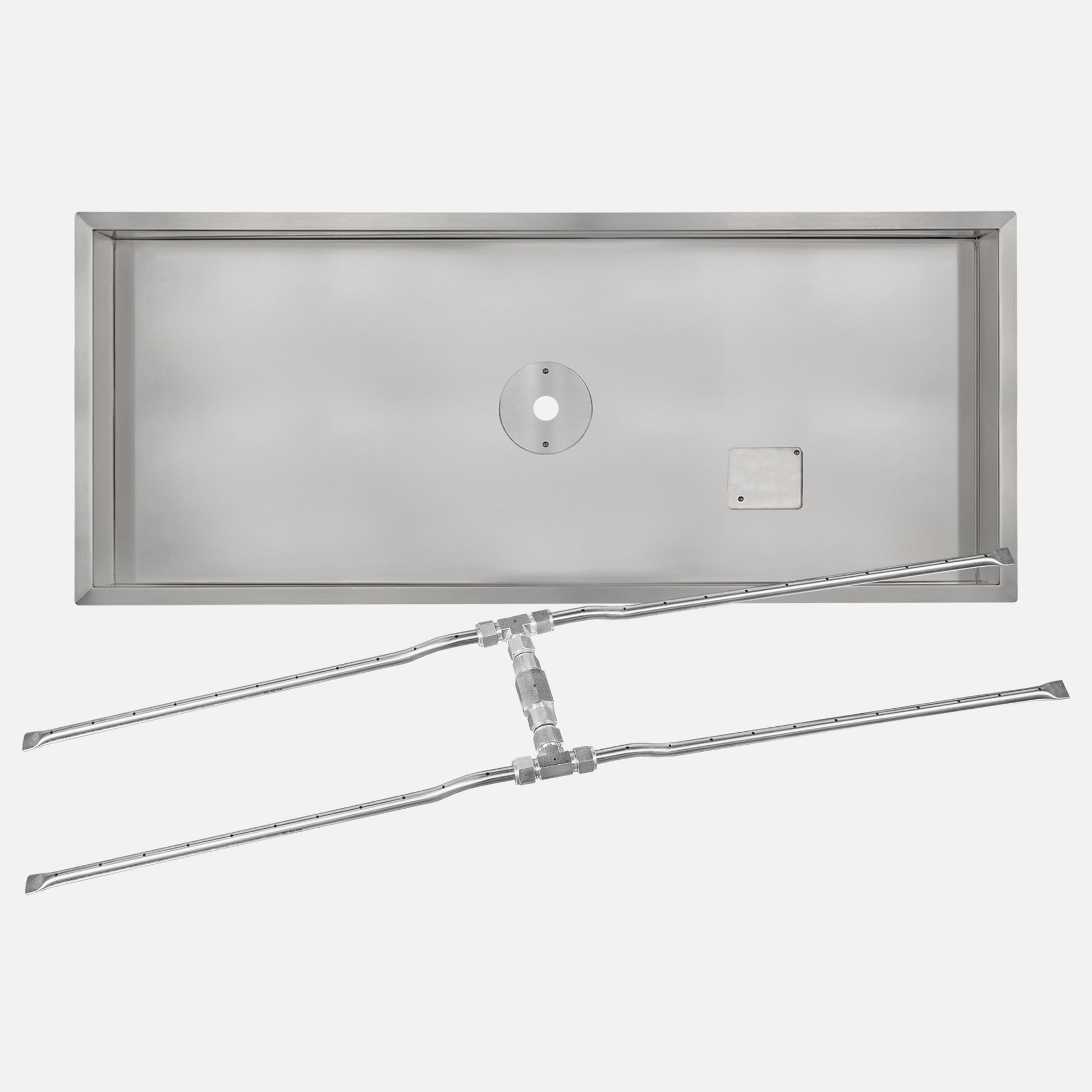

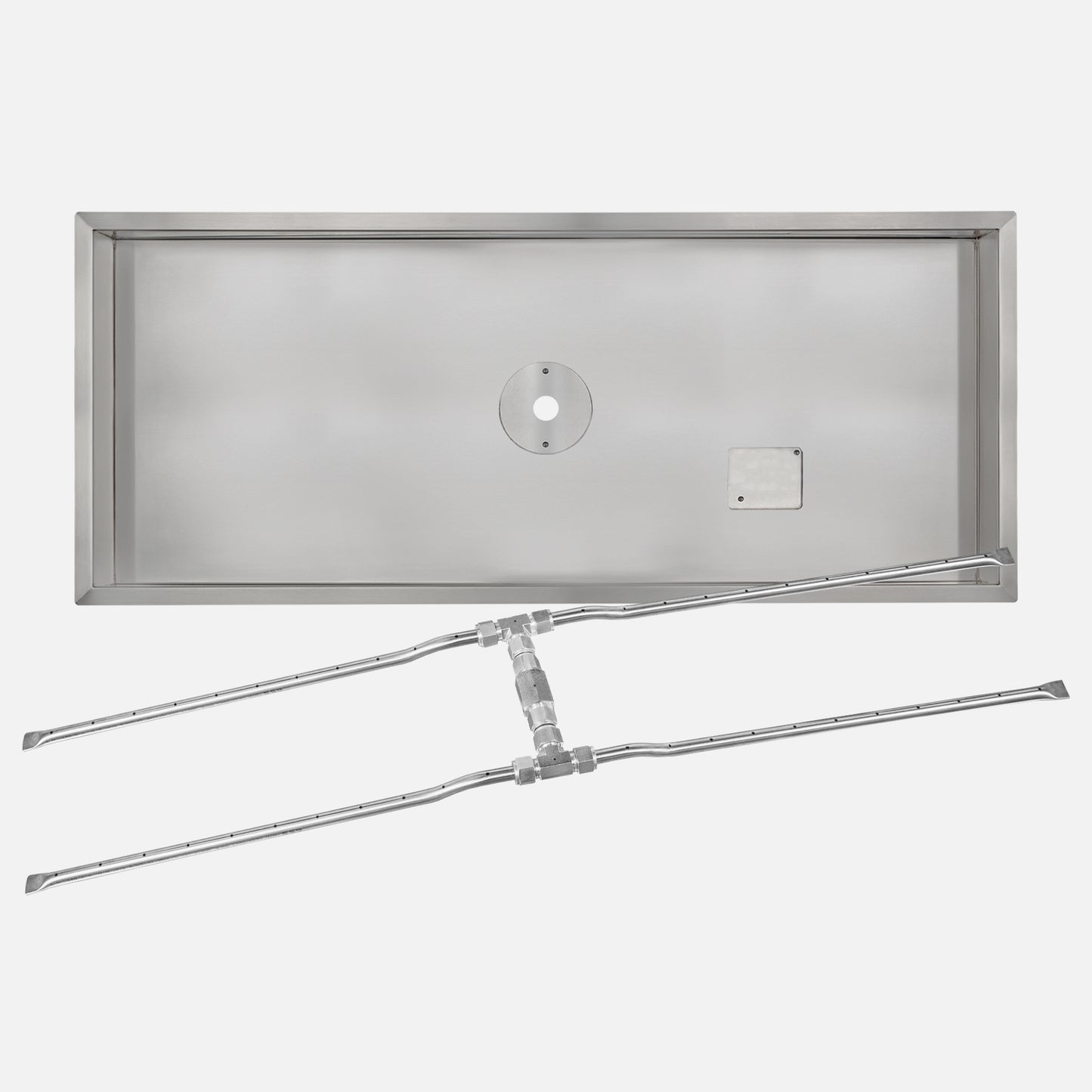

When your fire feature is meant to make a statement, the Fire by Design® Rectangle Stainless Steel Drop-In Burner Pan Kit with “H” Burner delivers. The dual-port “H” design produces two parallel lines of flame that merge together for fuller coverage and a more dramatic presence — ideal for larger installations or those seeking high visual impact.
Precision-built from 304 stainless steel, this drop-in pan installs flush for a smooth, integrated finish. Each kit includes the pan, “H” style burner, ignition system, flex lines, and fittings — everything required for a clean, quiet, reliable flame that elevates contemporary outdoor environments.
Why you’ll love it
- Expansive dual-flame design – “H” burner layout creates two broad flame channels for wider heat and coverage.
- Architectural scale – ideal for large fire features, outdoor lounges, and commercial installations.
- Clean, built-in finish – drop-in installation sits flush within custom enclosures for a refined look.
- Durable 304 stainless steel – resists heat warping, rust, and outdoor elements.
- Fuel flexibility – works with Natural Gas (NG) or Liquid Propane (LP).
- Ignition options – AWEIS (24V, 30VDC, 120V), battery, or manual match-lit operation.
- Quiet performance – Whisper Free flex lines ensure steady, silent gas flow.
- Range of sizes – 24–72 in with outputs from 43K – 238K BTU.
Recommended Media Fill (when paired with a bowl or enclosure)
Add depth and glow with fire glass, lava rock, or lava stone. Approximate media by size:
- 24" Pan – ~52 lbs fire glass / 3 bags lava rock / 1 bag rolled lava stone
- 30" Pan – ~81 lbs fire glass / 5 bags lava rock / 2 bags rolled lava stone
- 36" Pan – ~117 lbs fire glass / 6 bags lava rock / 2 bags rolled lava stone
- 48" Pan – ~208 lbs fire glass / 11 bags lava rock / 4 bags rolled lava stone
- 60" Pan – ~260 lbs fire glass / 13 bags lava rock / 5 bags rolled lava stone
- 72" Pan – ~312 lbs fire glass / 15 bags lava rock / 6 bags rolled lava stone
Technical Specifications
| Material | 304 Stainless Steel Pan / “H” Style Burner |
| Sizes | 24", 30", 36", 48", 60", 72" |
| BTU Range | 43K – 238K BTU (depending on size) |
| Ignition Options | AWEIS (24V, 30VDC, 120V), Battery, Manual Match-Lit |
| Gas Types | Natural Gas (NG) or Liquid Propane (LP) |
| Inlet | 1/2" or 3/4" with reducer (size dependent) |
What’s Included
- Rectangle stainless steel drop-in burner pan with “H” style burner
- Ignition system – AWEIS electronic, battery-powered, or manual key valve
- Power supply (24V transformer / 30VDC supply / 120V adapter if applicable)
- Whisper Free stainless steel flex gas line
- Field-serviceable pilot burner assembly (AWEIS models)
Important Notes
- Bowl or enclosure required — sold separately.
- Fire media not included — see recommendations above.
- Outdoor use only — professional installation required.
- Follow all local codes for gas and electrical connections.
Ships from Las Vegas, NV.
