The perfect balance of flame and form for modern fire features

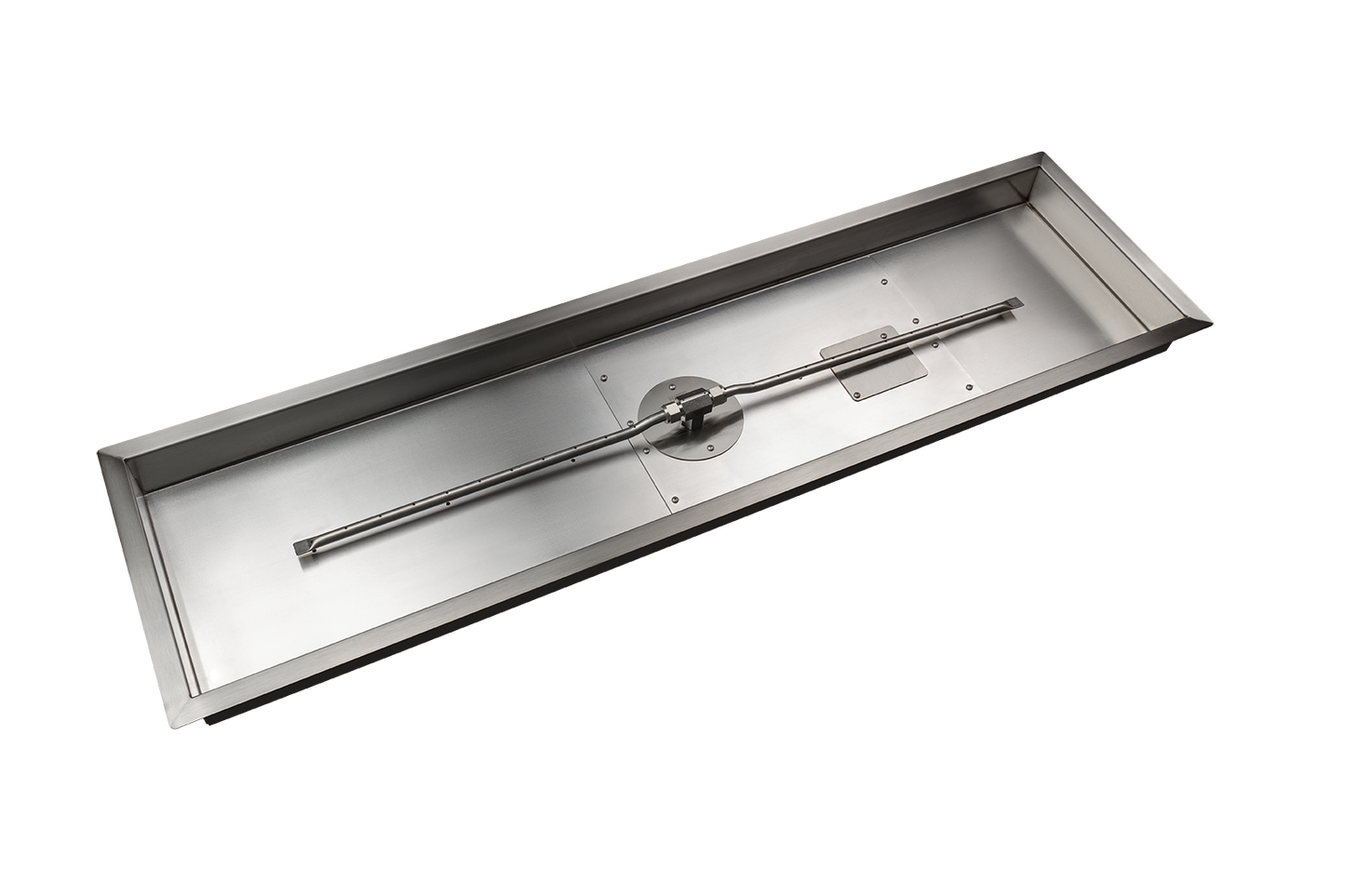

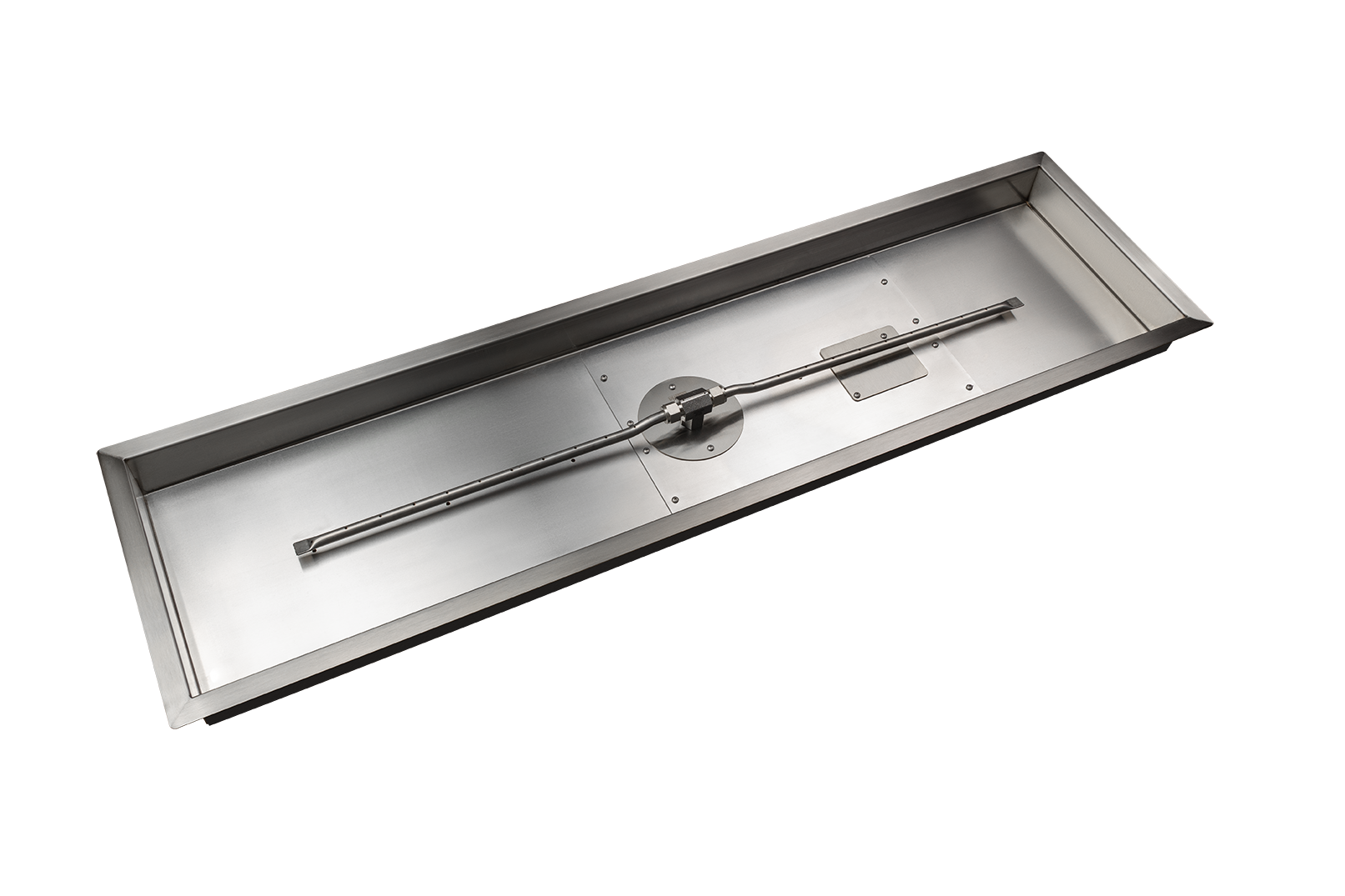

Long lines and even heat — that’s the beauty of a rectangular fire pit. The Fire by Design® Rectangle Stainless Steel Drop-In Burner Pan Kit with “T” Burner stretches your flame evenly from end to end, creating a ribbon of fire that anchors outdoor living spaces with warmth and symmetry.
Made from 304 stainless steel, this drop-in pan installs flush into custom enclosures for a clean, built-in appearance. Each kit includes the burner pan, “T” style burner, ignition system, flex lines, and fittings — everything you need for a reliable flame that lights easily, performs quietly, and looks striking night after night.
Why you’ll love it
- Expansive design – ideal for long seating areas, dining tables, and architectural fire features.
- Balanced flame – precision “T” burner delivers consistent heat and elegant flame height across the full pan.
- Refined finish – drop-in installation sits flush for a clean, professional appearance.
- Durable build – 304 stainless steel resists corrosion and heat warping season after season.
- Fuel options – compatible with Natural Gas (NG) or Liquid Propane (LP).
- Ignition your way – AWEIS (24V, 30VDC, 120V), battery, or manual match-lit.
- Quiet, efficient operation – Whisper Free flex lines ensure smooth, silent gas flow.
- Scaled to fit – 24–72 in pans with outputs from 43K – 238K BTU.
Recommended Media Fill (when paired with a bowl or enclosure)
Complete the look with fire glass, lava rock, or lava stone. Approximate quantities by burner size:
- 24" Pan – ~52 lbs fire glass / 3 bags lava rock / 1 bag rolled lava stone
- 30" Pan – ~81 lbs fire glass / 5 bags lava rock / 2 bags rolled lava stone
- 36" Pan – ~117 lbs fire glass / 6 bags lava rock / 2 bags rolled lava stone
- 48" Pan – ~208 lbs fire glass / 11 bags lava rock / 4 bags rolled lava stone
- 60" Pan – ~260 lbs fire glass / 13 bags lava rock / 5 bags rolled lava stone
- 72" Pan – ~312 lbs fire glass / 15 bags lava rock / 6 bags rolled lava stone
Technical Specifications
| Material | 304 Stainless Steel Pan / “T” Style Burner |
| Sizes | 24", 30", 36", 48", 60", 72" |
| BTU Range | 43K – 238K BTU (depending on size) |
| Ignition Options | AWEIS (24V, 30VDC, 120V), Battery, Manual Match-Lit |
| Gas Types | Natural Gas (NG) or Liquid Propane (LP) |
| Inlet | 1/2" or 3/4" with reducer (size dependent) |
What’s Included
- Rectangle stainless steel drop-in burner pan with “T” style burner
- Ignition system – AWEIS electronic, battery-powered, or manual key valve
- Power supply (24V transformer / 30VDC supply / 120V adapter if applicable)
- Whisper Free stainless steel flex gas line
- Field-serviceable pilot burner assembly (AWEIS models)
Important Notes
- Bowl or enclosure required — sold separately.
- Fire media not included — see recommendations above.
- Outdoor use only — professional installation required.
- Follow local codes for gas and electrical connections.
Ships from Las Vegas, NV.
