Bring geometric design and clean performance to your outdoor fire feature

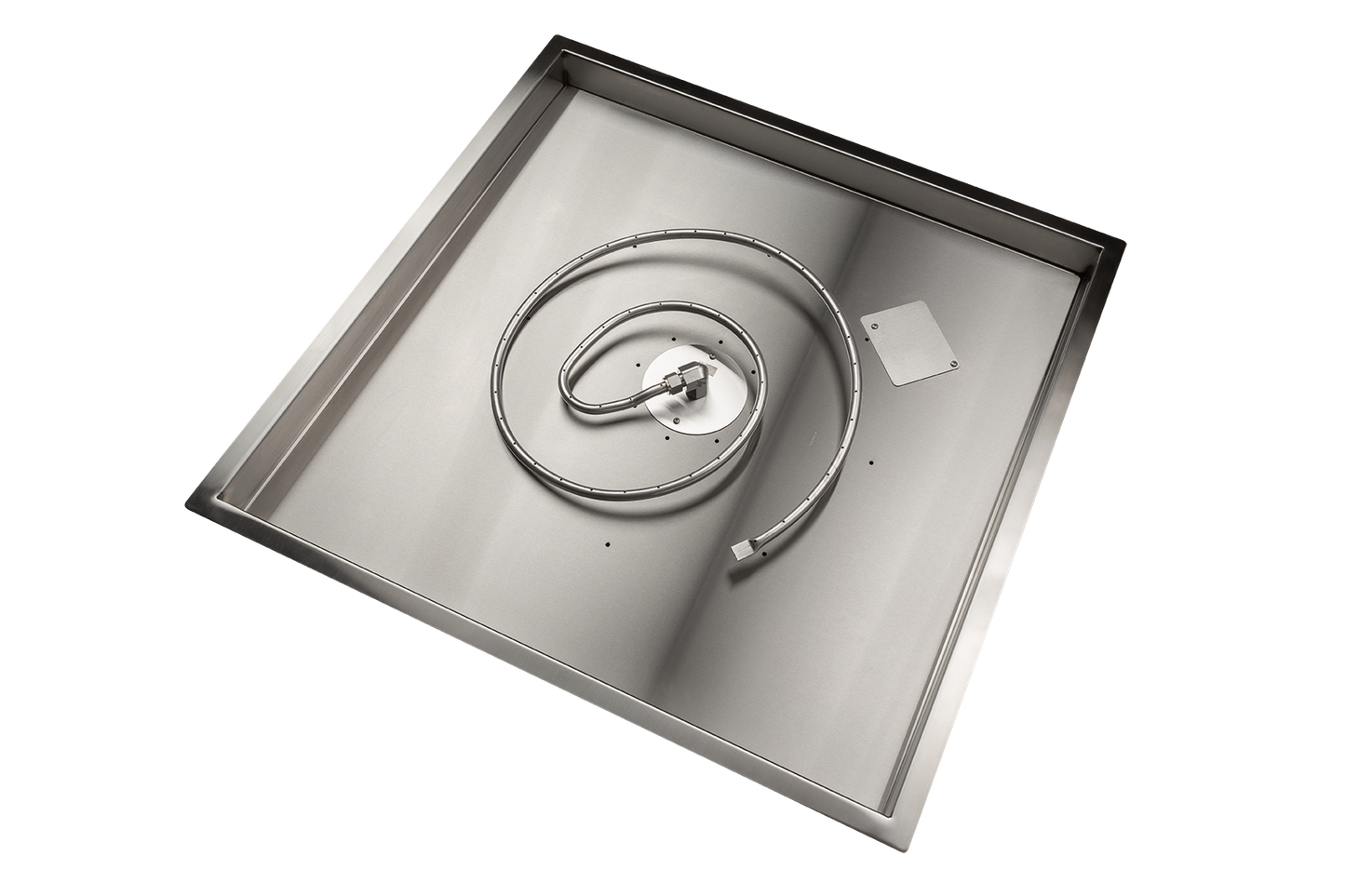

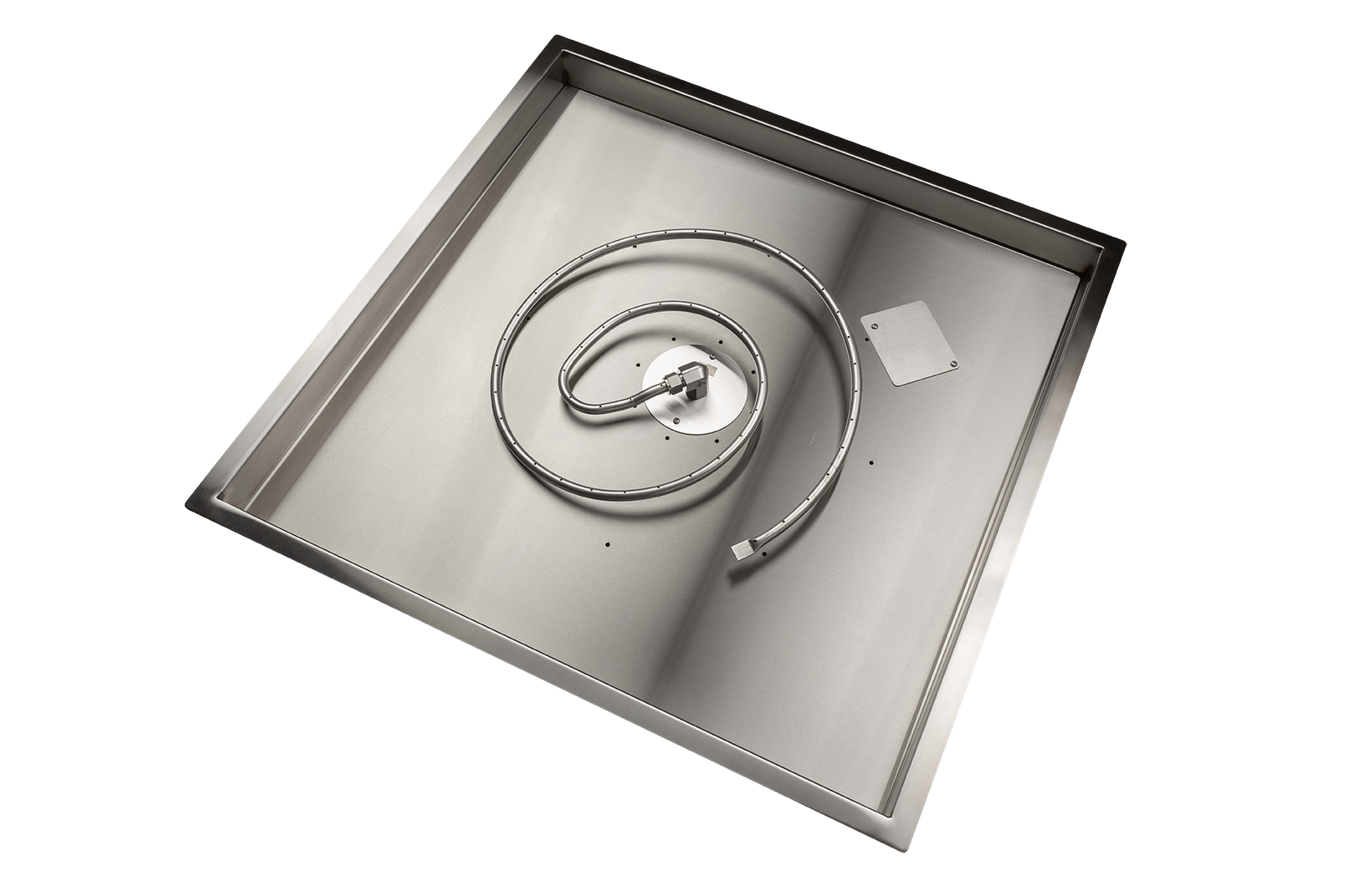

Sharp lines. Even flame. Polished simplicity. The Fire by Design® Square Stainless Steel Drop-In Burner Pan Kit gives your outdoor space a structured, architectural aesthetic while delivering the effortless ignition and steady burn that define every Fire by Design system. It’s form and function in perfect symmetry.
Crafted from 304 stainless steel for strength and precision, each kit includes a square drop-in pan, stainless fire ring, ignition system, flex lines, and fittings. Once set in your custom enclosure, it delivers a seamless, recessed finish that feels tailored to the space — durable, elegant, and built to perform season after season.
Why you’ll love it
- Architectural appeal – square design suits modern patios and structured hardscapes.
- Refined finish – drop-in style sits flush for a smooth, built-in appearance.
- Long-lasting quality – heavy-gauge 304 stainless steel resists rust and warping.
- Fuel options – works with Natural Gas (NG) or Liquid Propane (LP).
- Flexible ignition – AWEIS (24V, 30VDC, 120V), battery, or manual match-lit control.
- Quiet, efficient performance – Whisper Free flex lines for safe, silent flame delivery.
- Available in 18–48 in sizes – output from 43K – 238K BTU, matched to your space.
Recommended Media Fill (when paired with a bowl or enclosure)
Fire glass, lava rock, or lava stone complete the look. Use the guide below to estimate quantities:
- 18" Pan – ~29 lbs fire glass / 2 bags lava rock / 1 bag rolled lava stone
- 24" Pan – ~52 lbs fire glass / 3 bags lava rock / 1 bag rolled lava stone
- 30" Pan – ~81 lbs fire glass / 5 bags lava rock / 2 bags rolled lava stone
- 36" Pan – ~117 lbs fire glass / 6 bags lava rock / 2 bags rolled lava stone
- 48" Pan – ~208 lbs fire glass / 11 bags lava rock / 4 bags rolled lava stone
Technical Specifications
| Material | 304 Stainless Steel Pan / Fire Ring |
| Sizes | 18", 24", 30", 36", 48" |
| BTU Range | 43K – 238K BTU (depending on size) |
| Ignition Options | AWEIS (24V, 30VDC, 120V), Battery, Manual Match-Lit |
| Gas Types | Natural Gas (NG) or Liquid Propane (LP) |
| Inlet | 1/2" or 3/4" with reducer (size dependent) |
What’s Included
- Square stainless steel drop-in burner pan with fire ring
- Ignition system – AWEIS electronic, battery-powered, or manual key valve
- Power supply (24V transformer / 30VDC supply / 120V adapter if applicable)
- Whisper Free stainless steel flex gas line
- Field-serviceable pilot burner assembly (AWEIS models)
Important Notes
- Bowl or enclosure required – sold separately.
- Fire media not included – see recommendations above.
- Outdoor use only – professional installation required.
- Follow local codes for gas and electrical connections.
Ships from Las Vegas, NV.
