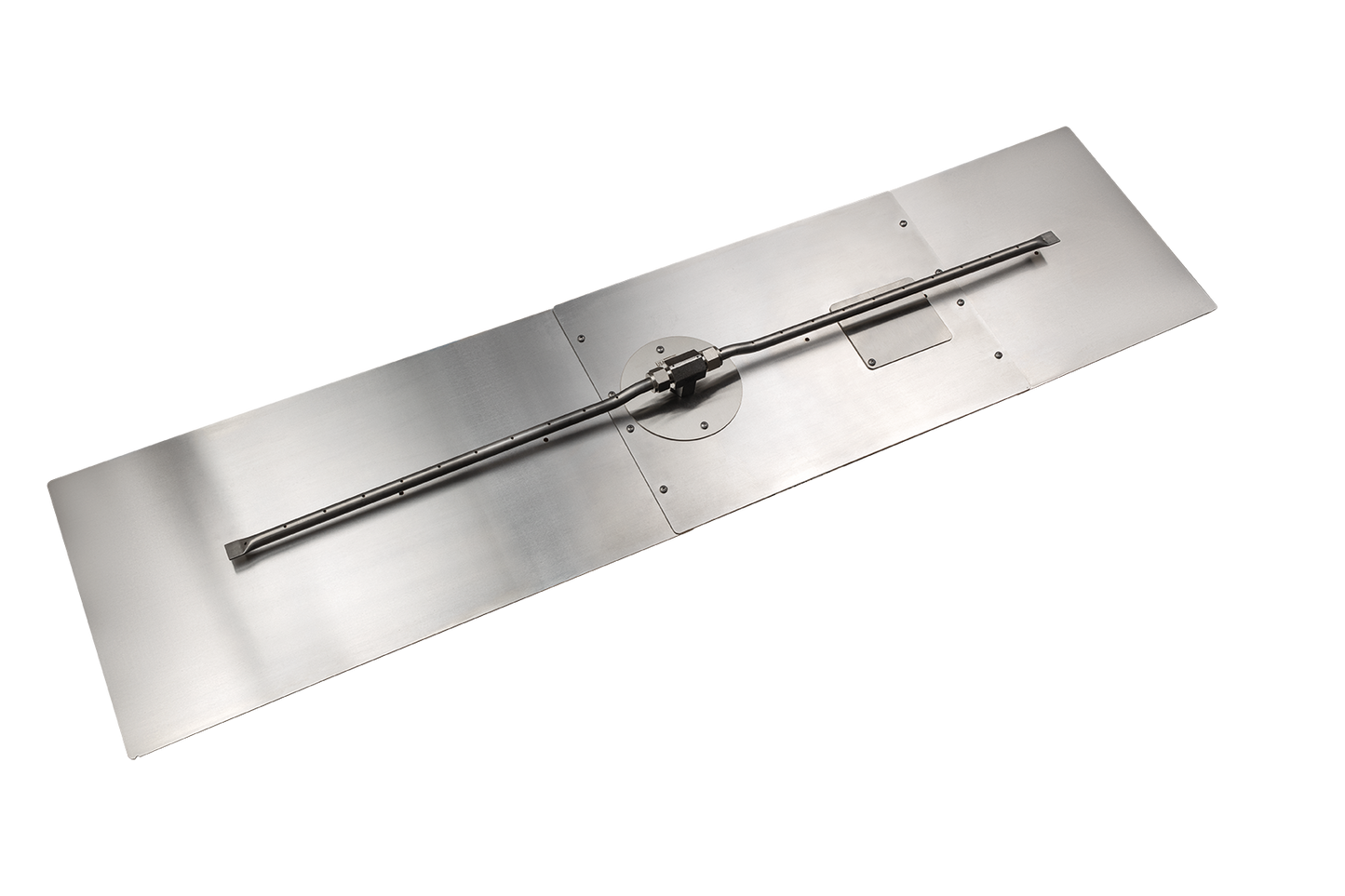

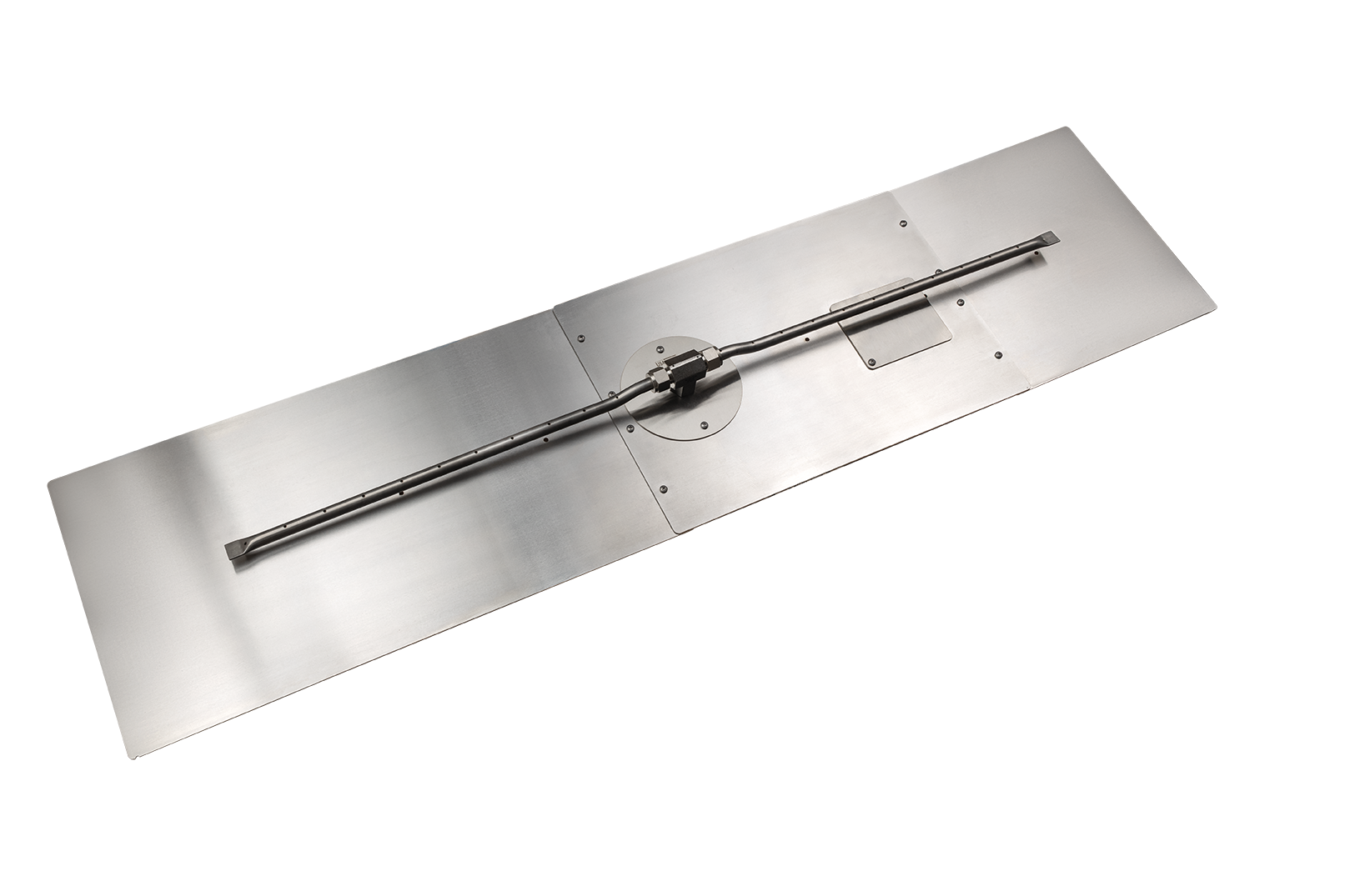

Bring a sleek, modern flame design to your outdoor space with the Rectangle Stainless Steel Flat Burner Pan Kit with “T” Burner from Fire by Design®. Engineered for precision and built for performance, these linear-style pans create an even, dramatic flame pattern that elevates any custom fire feature. Pair with your favorite bowl or enclosure to achieve a clean, professional finish.
Key Features
- 316 stainless steel construction for maximum corrosion resistance
- “T” burner design delivers a balanced, continuous flame across the length
- Ignition options: AWEIS electronic (24V, 30VDC, 120V), battery-powered, or manual match-lit
- Compatible with Natural Gas (NG) or Liquid Propane (LP)

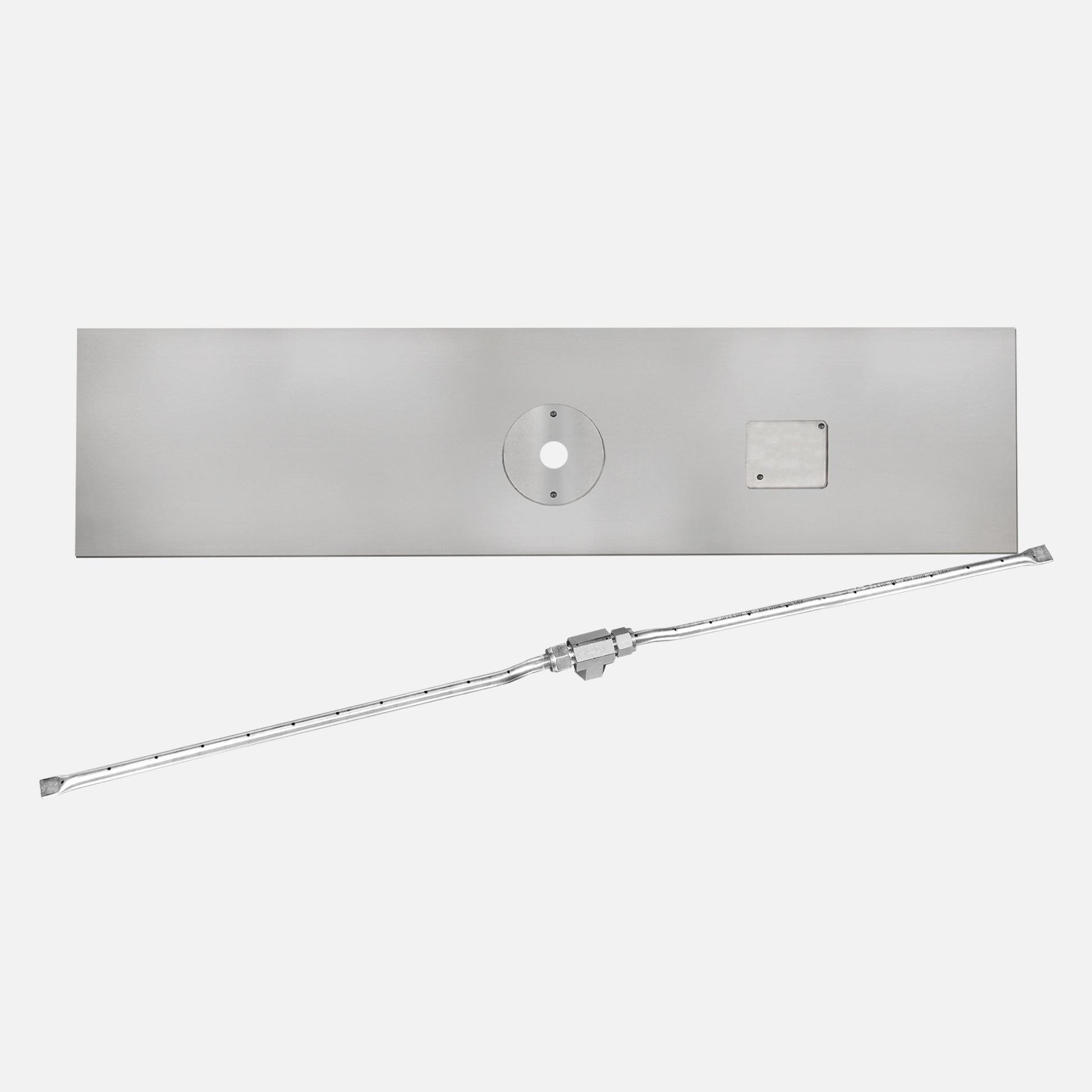

- Includes burner pan, linear “T” burner, flex lines, and ignition components
Recommended Media Fill (when paired with a bowl/enclosure)
- 24" x 6" Pan: ~12 lbs fire glass / 1 bag lava rock / 1 bag rolled lava stone
- 36" x 6" Pan: ~19 lbs fire glass / 1 bag lava rock / 1 bag rolled lava stone
- 48" x 6" Pan: ~26 lbs fire glass / 2 bags lava rock / 1 bag rolled lava stone
- 60" x 6" Pan: ~32 lbs fire glass / 2 bags lava rock / 1 bag rolled lava stone
- 72" x 6" Pan: ~38 lbs fire glass / 2 bags lava rock / 1 bag rolled lava stone
- 84" x 6" Pan: ~45 lbs fire glass / 3 bags lava rock / 1 bag rolled lava stone
- 96" x 6" Pan: ~51 lbs fire glass / 3 bags lava rock / 1 bag rolled lava stone
Technical Details
- Pan Material: 316 Stainless Steel
- Burner Type: Linear “T” Burner
- Pan Sizes: 24", 36", 48", 60", 72", 84", 96"
- BTU Output: 17K–119K BTUs (depending on size)
- Gas Inlet: 1/2" NG or LP with orifice and air mixer as required
- Ignition Options: AWEIS (24V, 30VDC, 120V), Battery, Manual Match-Lit
Why Fire by Design®
Fire by Design® systems combine engineering precision with elegant design. Trusted by builders, architects, and homeowners alike, these burner kits provide reliable ignition, consistent flame quality, and simple installation — ideal for creating contemporary linear fire features.
Notes
Bowl or enclosure is sold separately. Media quantities are recommendations and may vary by installation. Proper ventilation is required for safe operation and to maintain warranty coverage.
