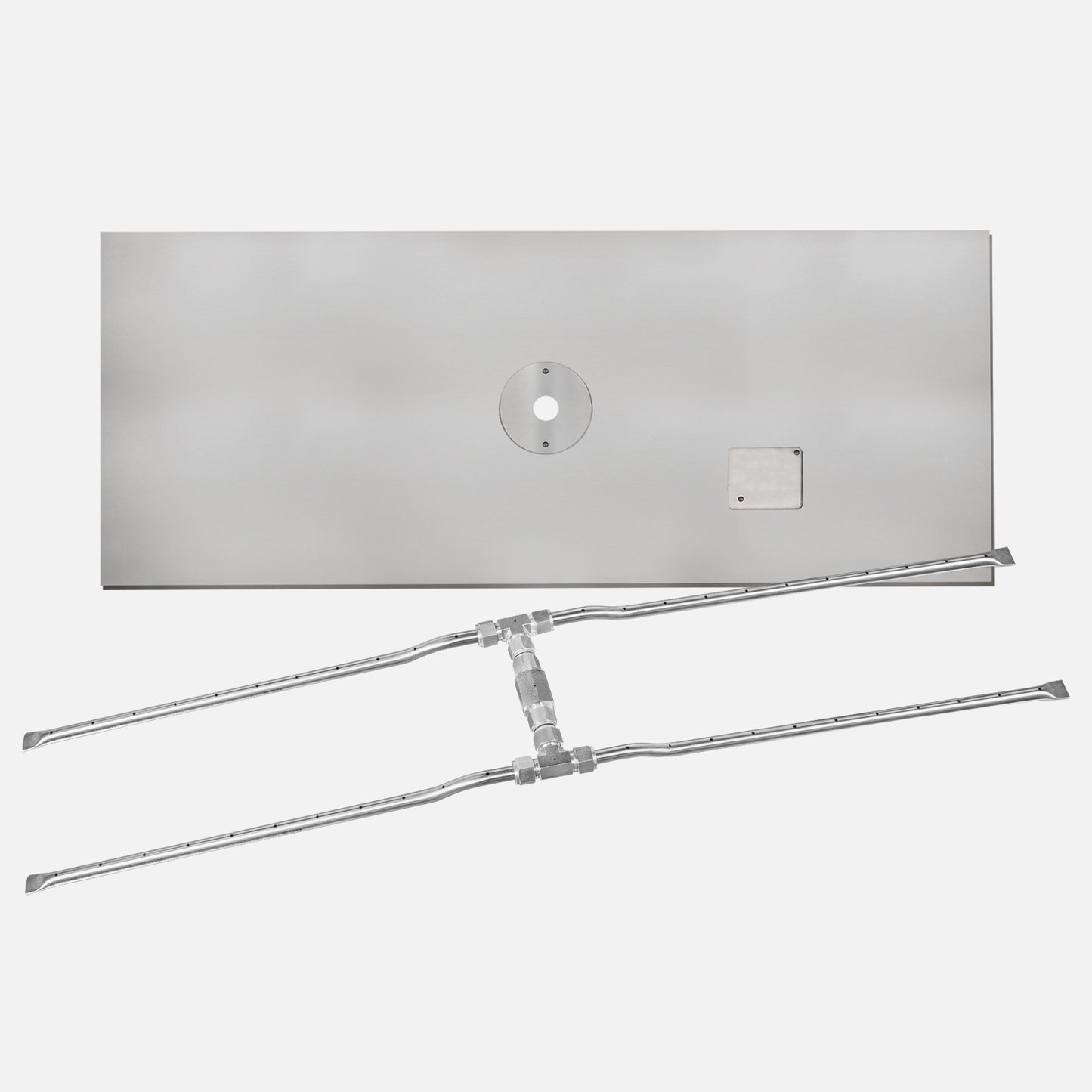

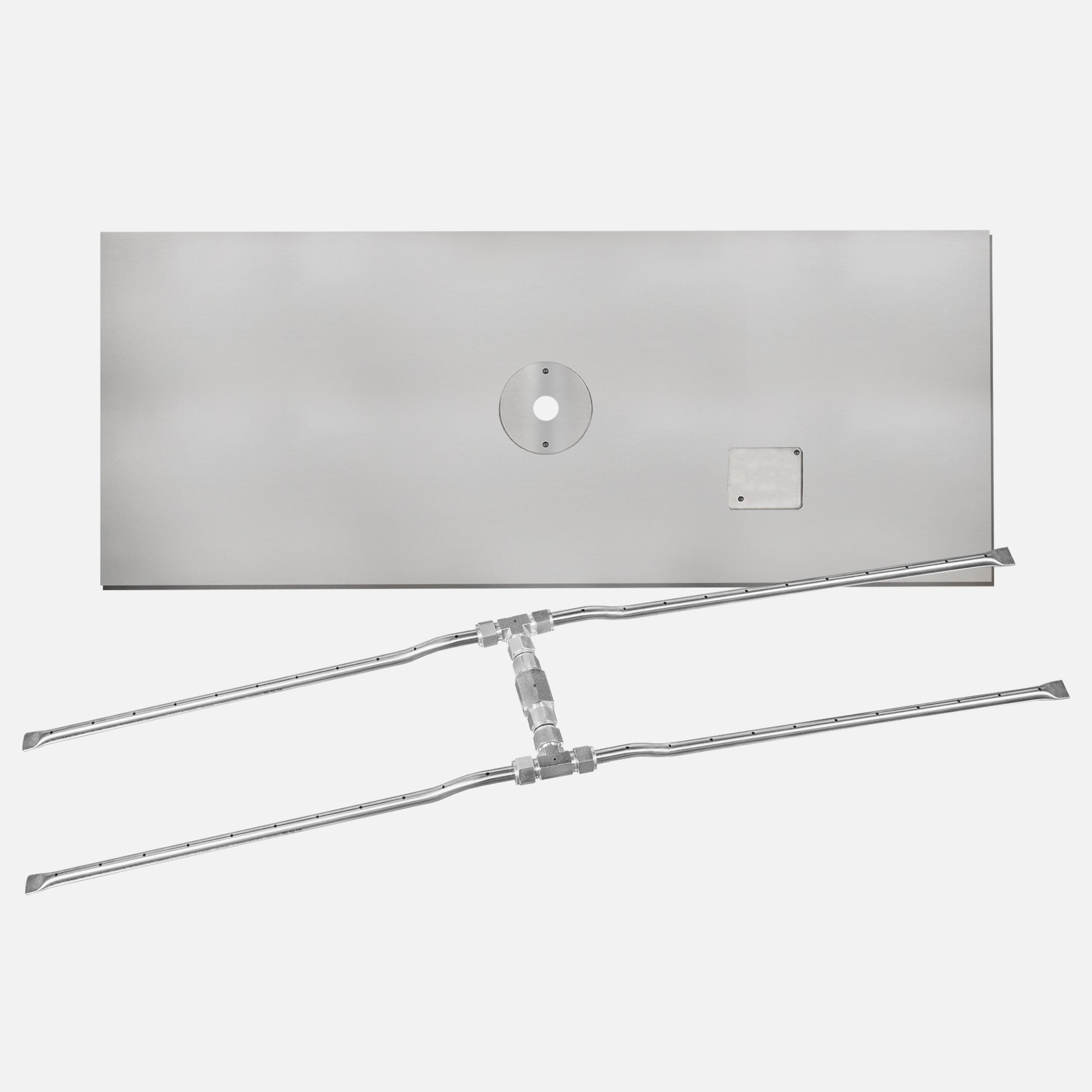

Transform your outdoor fire feature with the Rectangle Stainless Steel Flat Burner Pan Kit with “H” Burner from Fire by Design®. Designed for maximum flame coverage and visual impact, these pans create bold, evenly distributed flames — ideal for longer fire pits and architectural installations. Pair with your choice of bowl or custom enclosure for a professional-grade finish.
Key Features
- 316 stainless steel pan and “H” burner for superior durability and corrosion resistance
- Dual-row flame design provides full, even fire distribution
- Ignition options: AWEIS electronic (24V, 30VDC, 120V), battery-powered, or manual match-lit
- Compatible with Natural Gas (NG) or Liquid Propane (LP)
- Includes burner pan, H-style burner, flex lines, and ignition components
Recommended Media Fill (when paired with a bowl/enclosure)
- 24" x 12" Pan: ~25 lbs fire glass / 2 bags lava rock / 1 bag rolled lava stone
- 36" x 12" Pan: ~38 lbs fire glass / 2 bags lava rock / 1 bag rolled lava stone
- 48" x 12" Pan: ~53 lbs fire glass / 3 bags lava rock / 1 bag rolled lava stone
- 60" x 12" Pan: ~66 lbs fire glass / 4 bags lava rock / 2 bags rolled lava stone
- 72" x 12" Pan: ~78 lbs fire glass / 5 bags lava rock / 2 bags rolled lava stone
- 84" x 12" Pan: ~91 lbs fire glass / 5 bags lava rock / 2 bags rolled lava stone
- 96" x 12" Pan: ~104 lbs fire glass / 6 bags lava rock / 2 bags rolled lava stone
Technical Details
- Pan Material: 316 Stainless Steel
- Burner Type: Dual-row “H” Burner
- Pan Sizes: 24", 36", 48", 60", 72", 84", 96"
- BTU Output: 34K–238K BTUs (depending on size)
- Gas Inlet: 1/2" or 3/4" with NG or LP orifice and fittings
- Ignition Options: AWEIS (24V, 30VDC, 120V), Battery, Manual Match-Lit
Why Fire by Design®
Fire by Design® burner kits combine safety, reliability, and stunning visual performance. The “H” burner design provides an expansive flame field perfect for modern outdoor settings — engineered to meet the standards of professional installers and discerning homeowners alike.
Notes
Bowl or enclosure sold separately. Media quantities are approximate and vary by installation. Always install with proper ventilation and according to local gas and building codes.
