Wide flame presence — refined for larger layouts

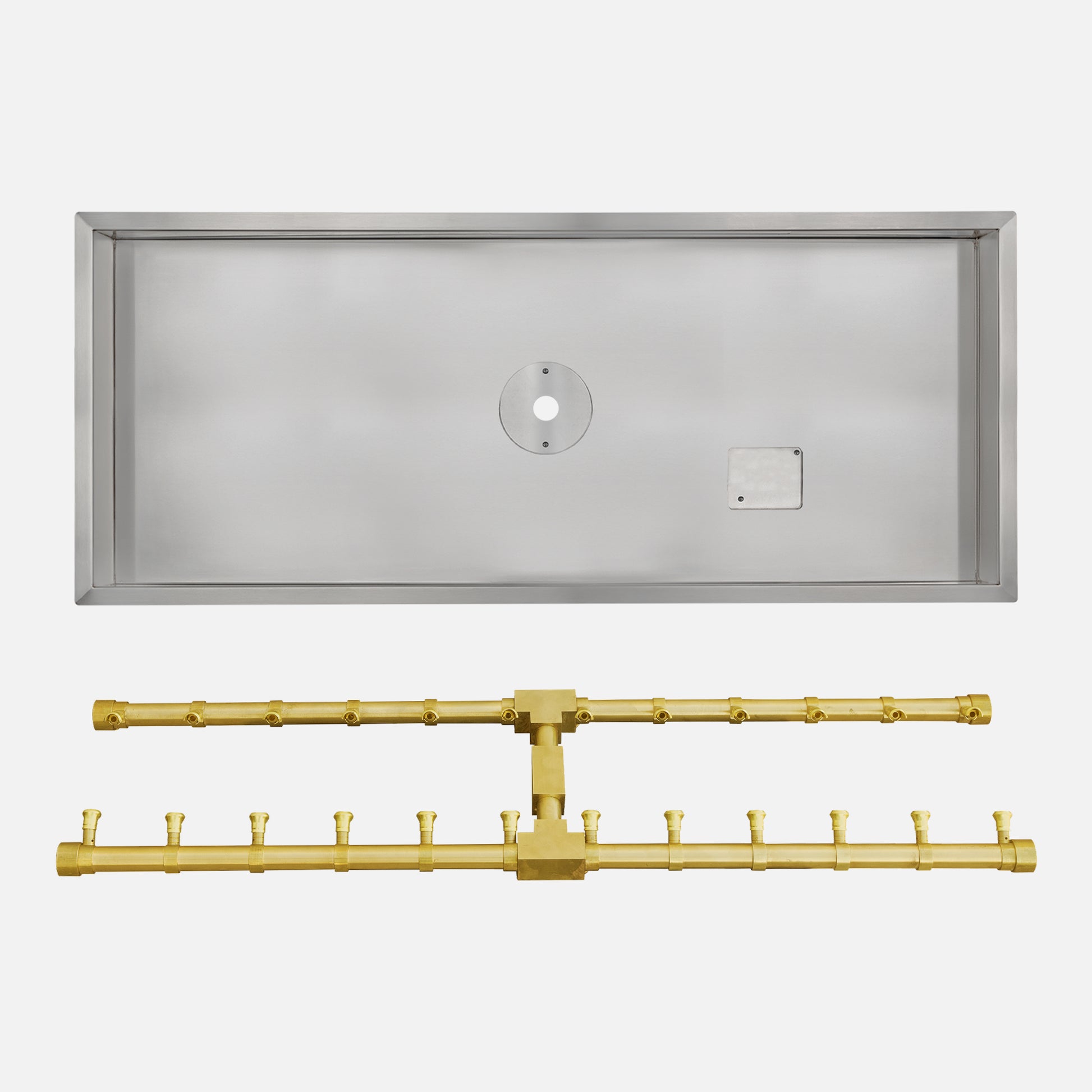

When proportion and visual balance matter, the Fire by Design® Rectangle Stainless Steel Drop-In Burner Pan Kit with Brass “H” Burner delivers. Designed for wider fire features, it creates a bold ribbon of flame that feels sculptural yet serene — perfect for linear lounges, poolside seating, and contemporary courtyards.
Each kit features a precision-formed 304 stainless pan and solid brass burner for even fuel distribution and long-term durability. Choose from NG or LP and five ignition options — AWEIS 24 V, 30 VDC, 120 VAC, Battery or Manual Match-Lit — to match your design and control preferences.
Why Designers Choose It
- Perfect for wide rectangular fire features — see variants for size options
- Precision brass “H” burner maintains consistent flame height across the span
- Durable 304 stainless steel construction resists corrosion and heat fatigue
- Compatible with NG or LP and AWEIS 24 V, 30 VDC, 120 VAC, Battery or Match-Lit systems
- Installs flush for a clean, architectural finish
- Backed by Your Elevated Yard and Fire by Design® expertise
Refined Fire Media
Pair with high-clarity fire glass or tumbled lava rock to let the brass burner’s geometry shine through. Maintain level placement for an even flame pattern and avoid compact fillers that can obstruct gas flow.
Recommended Media Fill (when paired with a bowl or enclosure)
Add depth and glow with fire glass, lava rock, or lava stone. Approximate media by size:
- 24" Pan – ~52 lbs fire glass / 3 bags lava rock / 1 bag rolled lava stone
- 30" Pan – ~81 lbs fire glass / 5 bags lava rock / 2 bags rolled lava stone
- 36" Pan – ~117 lbs fire glass / 6 bags lava rock / 2 bags rolled lava stone
- 48" Pan – ~208 lbs fire glass / 11 bags lava rock / 4 bags rolled lava stone
- 60" Pan – ~260 lbs fire glass / 13 bags lava rock / 5 bags rolled lava stone
- 72" Pan – ~312 lbs fire glass / 15 bags lava rock / 6 bags rolled lava stone
Technical Specifications
| Material | 304 Stainless Steel pan with solid brass “H” burner |
| Sizes | 36", 48", 60" and 72"x12" |
| Ignition Options | AWEIS 24 V, AWEIS 30 VDC, AWEIS 120 VAC, Battery, Manual Match-Lit |
| Gas Types | Natural Gas (NG) or Liquid Propane (LP) |
| Inlet | 1/2" or 3/4" (with reducer as required) |
| BTU Range | Varies by size and fuel; see spec sheet |
What’s Included
- Rectangle stainless steel drop-in burner pan
- Brass “H” burner assembly
- All fittings and connections per ignition system
- Installation guide
Important Notes
- Bowl or enclosure required — sold separately.
- Fire media not included — see recommendations above.
- Outdoor use only — professional installation required. Ensure proper ventilation and drainage in the enclosure
- Follow local codes for gas and electrical connections.
Ships from Las Vegas, NV.
