Linear elegance — a single ribbon for elongated spaces

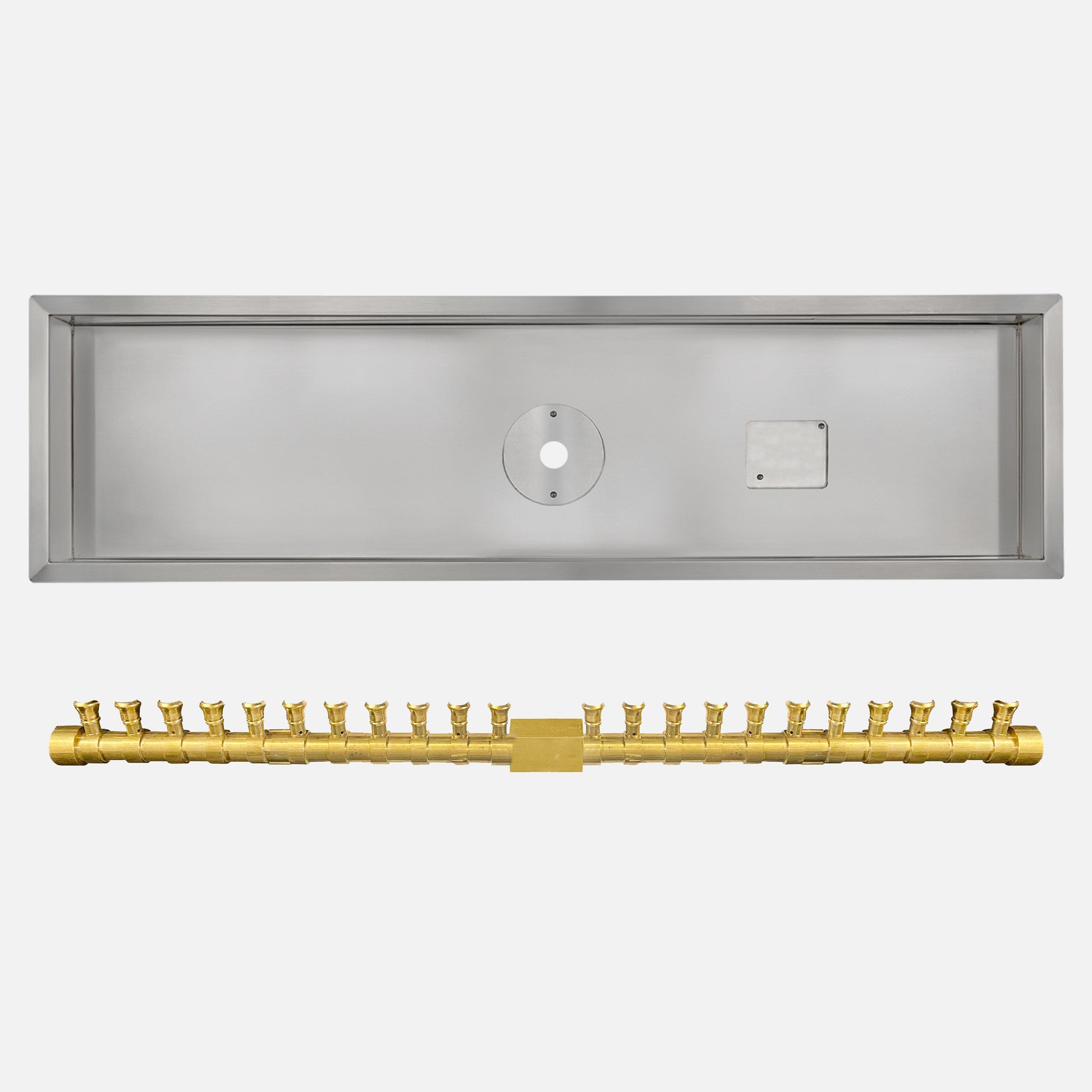

For dining-side installations and long seating runs, the Fire by Design® Rectangle Stainless Steel Drop-In Burner Pan Kit with Brass “T” Burner pulls a smooth line of flame from end to end — refined, modern, and quietly dramatic.
Each kit features a precision-formed 304 stainless pan and solid brass burner for even fuel distribution and long-term durability. Choose from NG or LP and five ignition options — AWEIS 24 V, 30 VDC, 120 VAC, Battery or Manual Match-Lit — to match your design and control preferences.
Why Designers Choose It
- Ideal for rectangular fire features — continuous linear flame
- Precision brass “T” burner maintains even flame along the long axis
- Durable 304 stainless steel construction resists corrosion and heat fatigue
- Compatible with NG or LP and AWEIS 24 V, 30 VDC, 120 VAC, Battery or Match-Lit systems
- Installs flush for a clean, architectural finish
- Backed by Your Elevated Yard and Fire by Design® expertise
Refined Fire Media
Choose high-clarity glass or tumbled lava rock; keep media level and below the lip to protect ports and preserve the linear flame effect.
Recommended Media Fill (when paired with a bowl or enclosure)
Add depth and glow with fire glass, lava rock, or lava stone. Approximate media by size:
- 24" Pan – ~52 lbs fire glass / 3 bags lava rock / 1 bag rolled lava stone
- 30" Pan – ~81 lbs fire glass / 5 bags lava rock / 2 bags rolled lava stone
- 36" Pan – ~117 lbs fire glass / 6 bags lava rock / 2 bags rolled lava stone
- 48" Pan – ~208 lbs fire glass / 11 bags lava rock / 4 bags rolled lava stone
- 60" Pan – ~260 lbs fire glass / 13 bags lava rock / 5 bags rolled lava stone
- 72" Pan – ~312 lbs fire glass / 15 bags lava rock / 6 bags rolled lava stone
Technical Specifications
| Material | 304 Stainless Steel pan with solid brass “T” burner |
| Sizes | 36", 48" or 60"x6" |
| Ignition Options | AWEIS 24 V, AWEIS 30 VDC, AWEIS 120 VAC, Battery, Manual Match-Lit |
| Gas Types | Natural Gas (NG) or Liquid Propane (LP) |
| Inlet | 1/2" or 3/4" (with reducer as required) |
| BTU Range | Varies by size and fuel; see spec sheet |
What’s Included
- Rectangle stainless steel drop-in burner pan
- Brass “T” burner assembly
- All fittings and connections per ignition system
- Installation guide
Important Notes
- Bowl or enclosure required — sold separately.
- Fire media not included — see recommendations above.
- Outdoor use only — professional installation required. Ensure proper ventilation and drainage in the enclosure
- Follow local codes for gas and electrical connections.
Ships from Las Vegas, NV.
