Extend Your Energy Capacity with Confidence

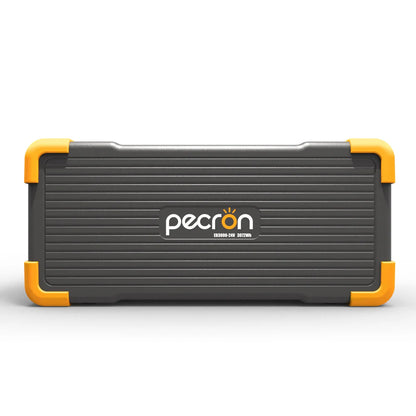

Double your runtime and elevate your off-grid experience with the Pecron EB3000-24V Expansion Battery. Built with long-life LiFePO₄ cells, this 3,072 Wh module connects seamlessly with compatible Pecron power stations to deliver dependable energy for extended trips, home backup, or high-demand projects.
Compact, safe, and easy to integrate, it’s designed for clean, silent power expansion — adding flexibility without complexity.
Why You’ll Love It
- 3,072 Wh LiFePO₄ battery — stable, long-cycle chemistry rated 3,500 + cycles (80 % capacity retention)

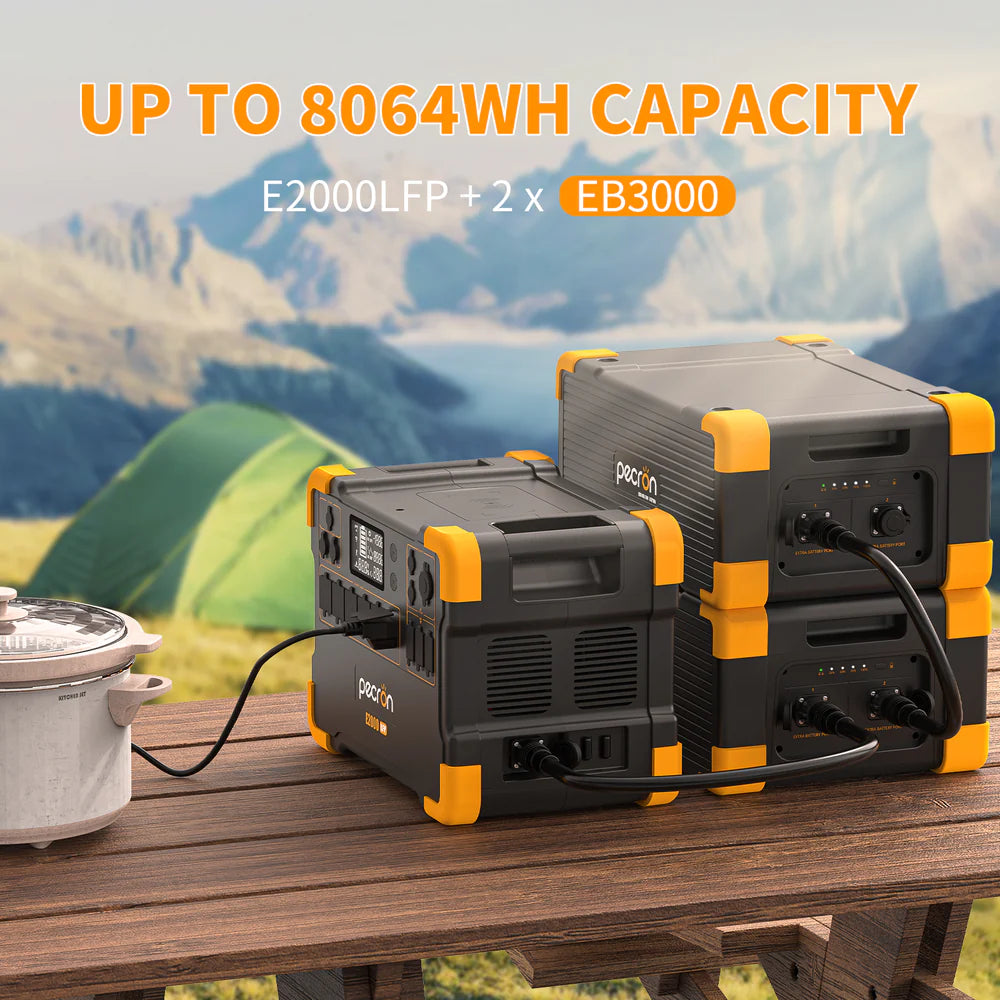

- Expandable energy — connect up to two EB3000-24V modules with the E2000LFP for up to 8,064 Wh total
- Flexible inputs — AC adapter, solar charging (400 W max), or vehicle charging
- Solar input 12 V – 95 V DC / 15 A max / 400 W max for efficient panel compatibility

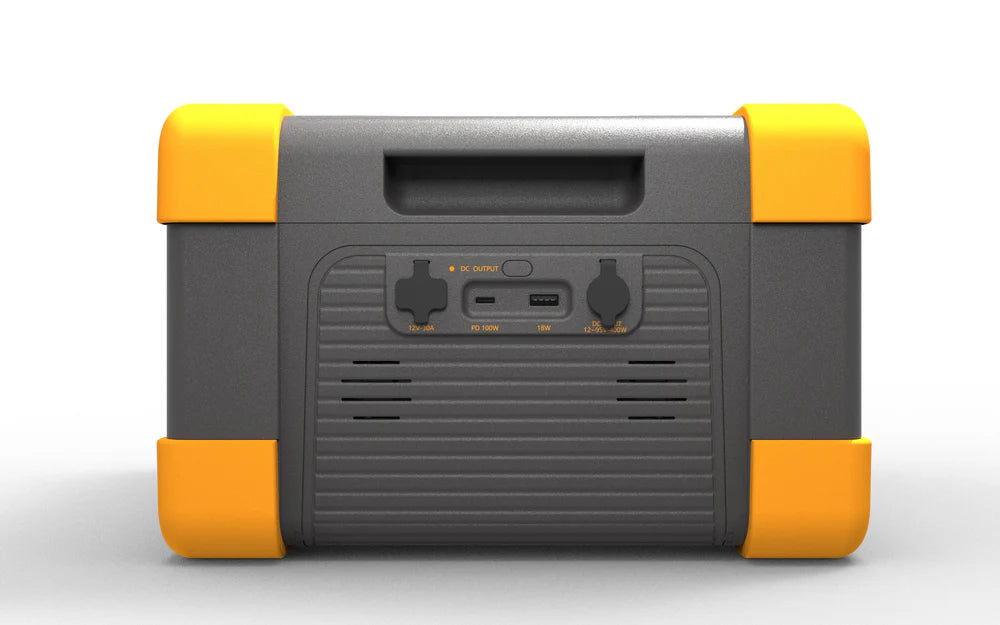

- Versatile outputs — XT60 (30 A max), PD 100 W USB-C, USB-A, 12 V 10 A car port
- Safe operation with over-voltage, low-voltage, over-temp, and short-circuit protection
- Rugged yet portable design for home, RV, and field use
- Silent, zero-emission performance — ideal for indoor or outdoor settings
Recommended Use

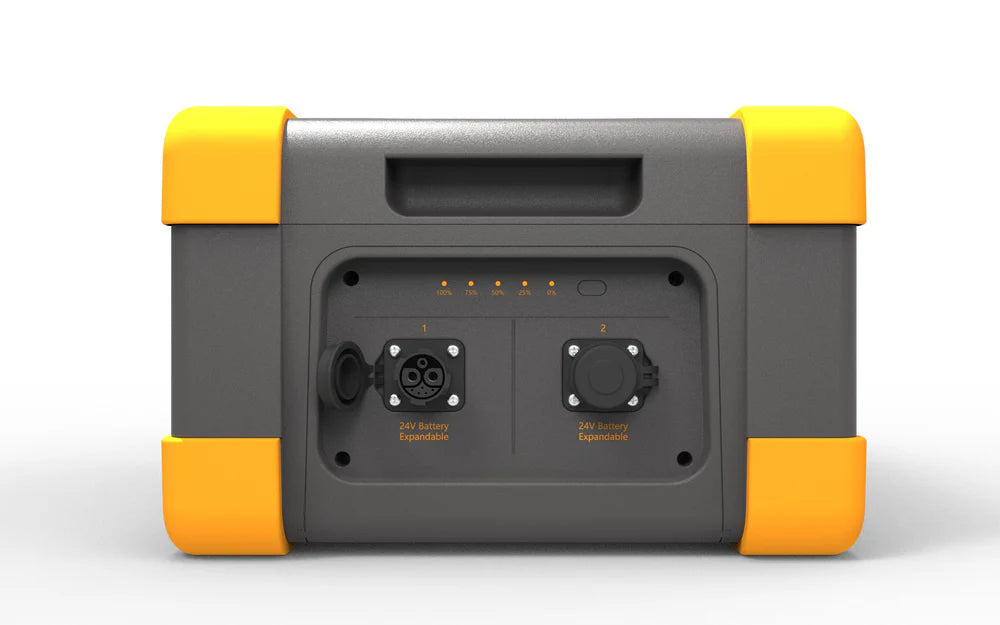

Connect directly to compatible Pecron E2000LFP or other 24 V Pecron units to expand total capacity. Use Pecron-approved link cables for safe operation.
Technical Specifications
| Model Number | EB3000-24V |
| Battery Type | LiFePO₄ (Lithium Iron Phosphate) |
| Capacity | 3,072 Wh (25.6 V / 120 Ah) |
| Cycle Life | ≈ 3,500 + cycles to 80 % capacity |
| Input Methods | AC Adapter / Solar / Car Charging |
| Solar Input | 12 V – 95 V DC / 15 A max / 400 W max |
| Outputs | XT60 (30 A max); PD 100 W USB-C; USB-A; 12 V 10 A car port |
| Cascade Support | Up to 2 units with E2000LFP (8,064 Wh total) |
| Weight | ≈ 57.3 lb (26 kg) |
| Protection | Over-voltage, low-voltage, over-temperature, overload, AC short circuit |

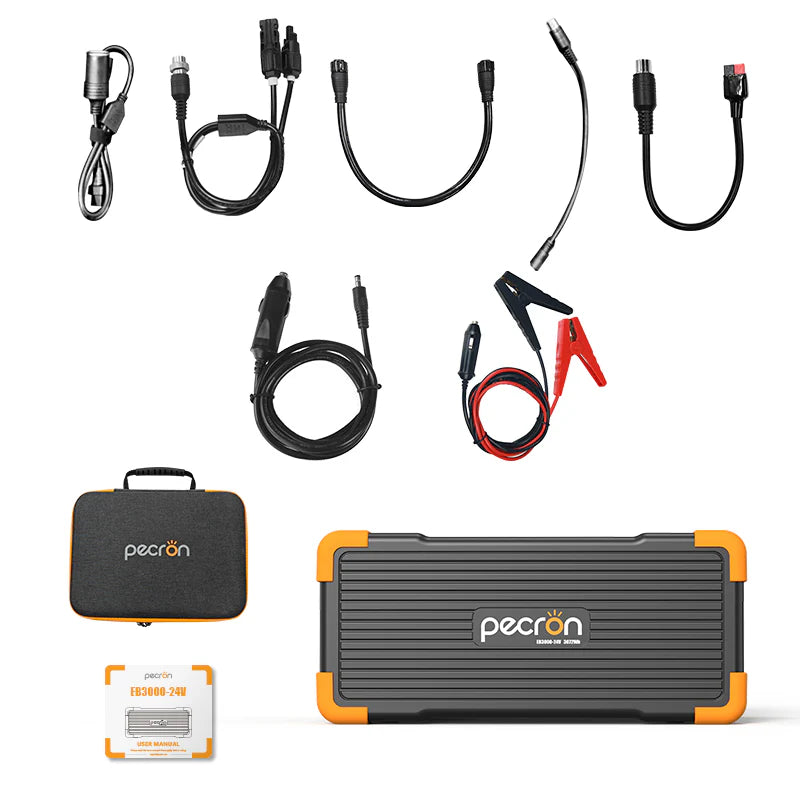

What’s Included
- Pecron EB3000-24V Expansion Battery
- AC charging adapter
- Connection cable (for Pecron E2000LFP or compatible models)
- User manual and warranty guide
- For 48 V systems, see the Pecron EP3000-48V Expansion Battery — ideal for pairing with E1000LFP, E1500LFP, E2400LFP, and E3600LFP power stations.
Compatibility

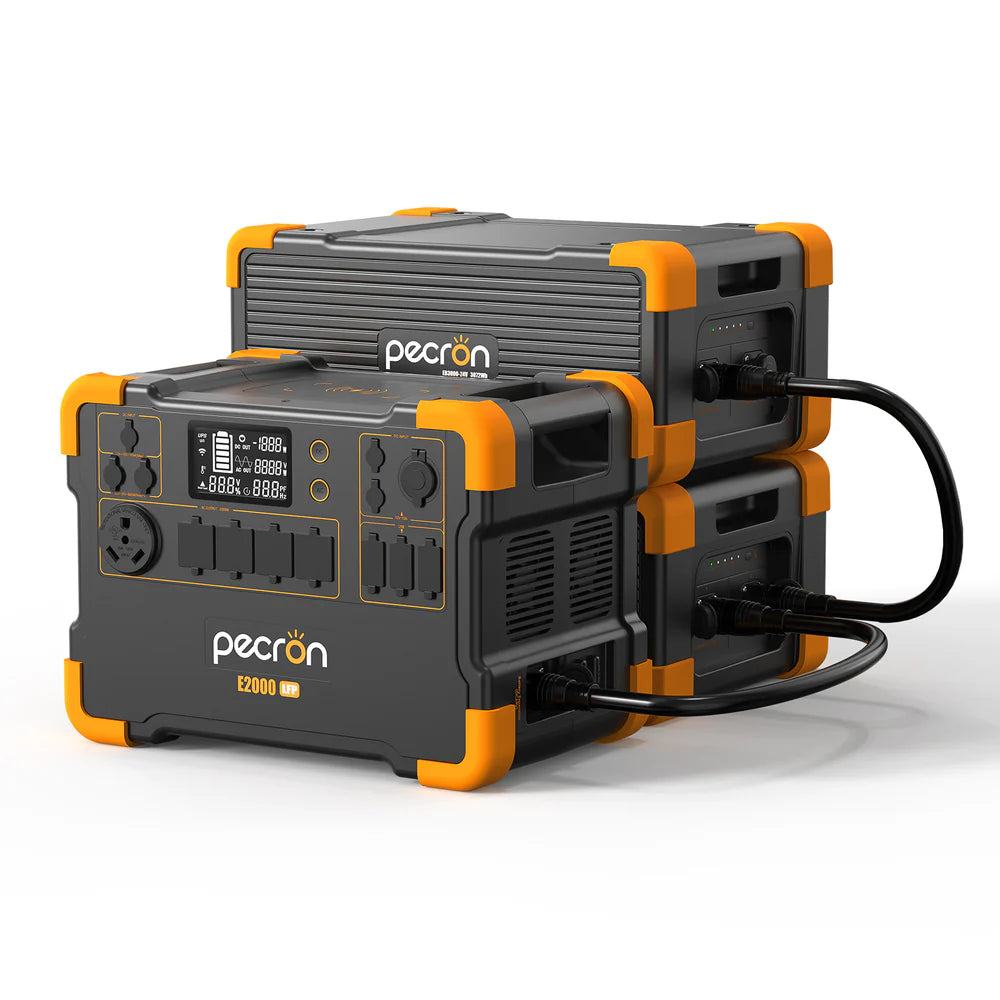

- Designed for direct use with Pecron E2000LFP power stations

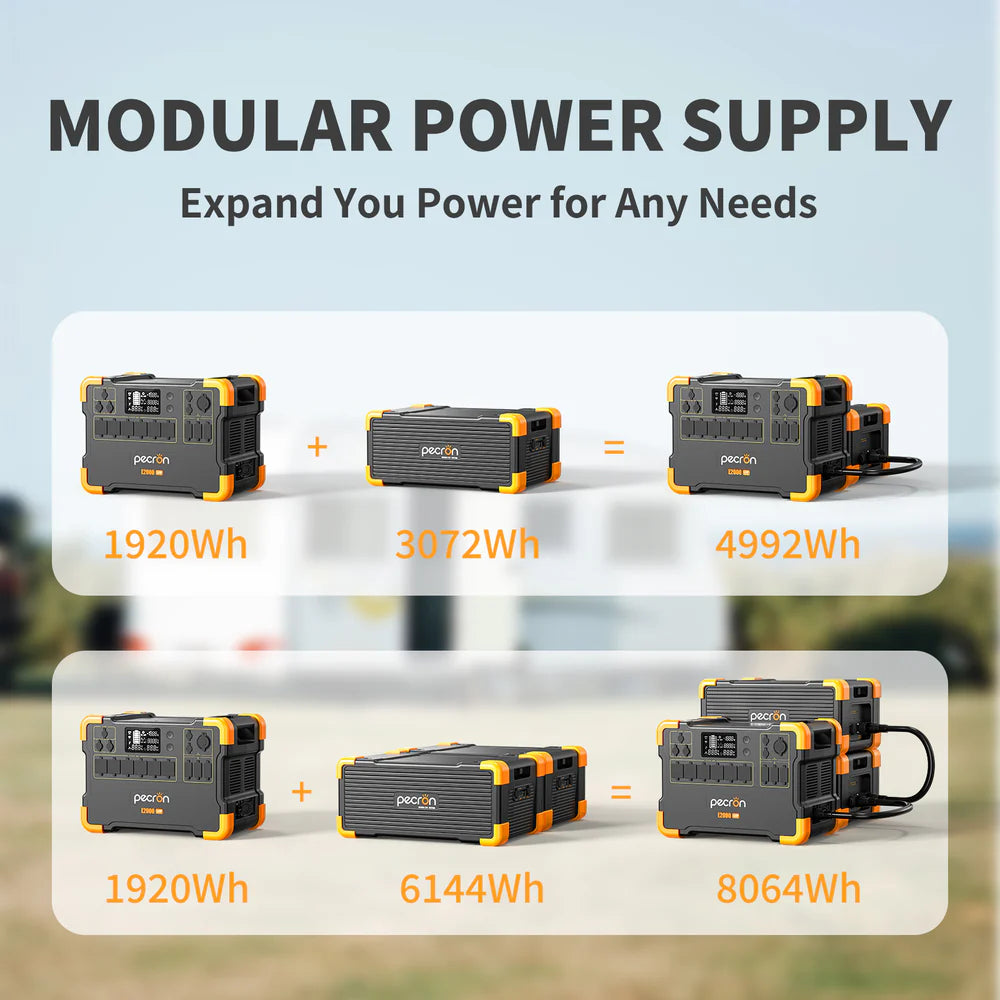

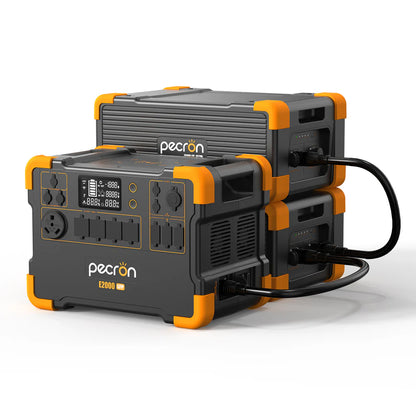

- Supports cascading up to two EB3000-24V modules for a combined capacity of 8,064 Wh
- Adapter-supported use with Pecron E1500LFP and other 24 V Pecron models (verify specifications before connection)
- Not compatible with 48 V systems such as the E3600LFP or F3000LFP
- Use only Pecron-approved connection cables and accessories
Important Notes
- This is an expansion battery module — it does not function as a stand-alone power station.
- Store indoors when not in use to preserve battery life and performance
- Covered by a one-year manufacturer warranty through Pecron
- Ships directly from Pecron’s California warehouse with tracking and signature confirmation
